GPS Equipped Radio Controlled Sailplane HOWTO

Table of Contents:

Garmin GPS
Garmin to PC interface
Plotting software
Topography data
Aerial Imagery
Parts List

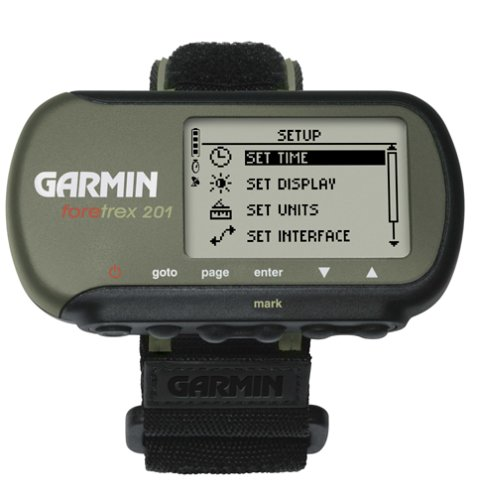

Garmin Foretrex 201

First things first, you need a decent small GPS receiver.  I suggest the Garmin Foretrex 201 GPS receiver because it is small and light, it is WAAS capable for 3 meter accuracy in all three axes, and is capable of storing 10,000 measurements in the internal flash memory.  I shuttled off to REI to get one.  It set me back about $170, but I figured it was a small price to pay for something with so much capability.   Later I found you can get them from for $150 or so.


Let me tell you, this is one cool gadget.  It weighs 2.8oz and is about the size of a  large RC receiver.  It's waterproof and has a 15 hour internal lithium rechargeable battery.  The foretrex comes with a serial cable for downloading the recordings to a PC, but it didn't come with any software.  I pondered what to do...


No problem, you need to get a package called G7toWin if you are using Windows (gpspoint on Linux).  It is a freeware program that knows how to talk to Garmin GPS receivers.

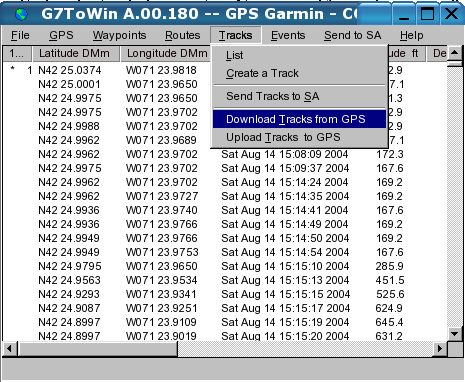

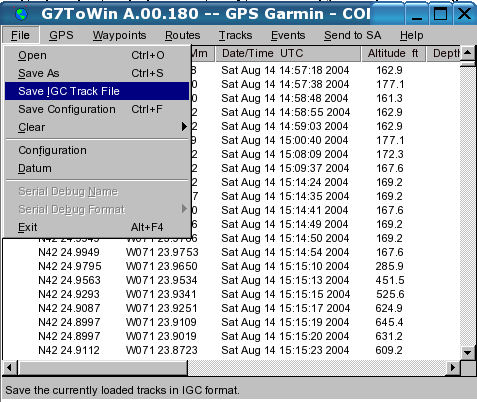

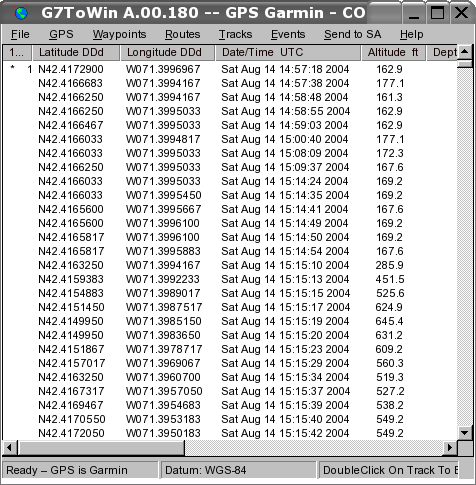

g7towing7towin download tracksg7towin export igc
I downloaded the code and hooked up the GPS unit to serial port COM1 on my computer.  It was easy enough.  I just clicked on "Download tracks from GPS",   then "List", and there were the GPS data points on my screen.  That was no sweat, but what I really wanted to do was to plot the flight so that I could visualize where I was flying, how high I was launching, and so on.  I tried to find a package to do this on the internet, but all of them were commercial software, or cripple ware, and I didn't really want to shell out more cash for this project.  After some more persistent searching I found...


Let me tell you,  there are some great pieces of open-source software out there.  Not only is this one free, but the users can examine the code, make improvements as needed , and finally contribute their improvements to benefit all users.  Using G7toWin I exported my GPS tracks to IGC format and read them in using GPLIGC.  On Linux, you can use the perl script in the CVS distribution of GPLIGC to convert the file from gpspoint to igc.

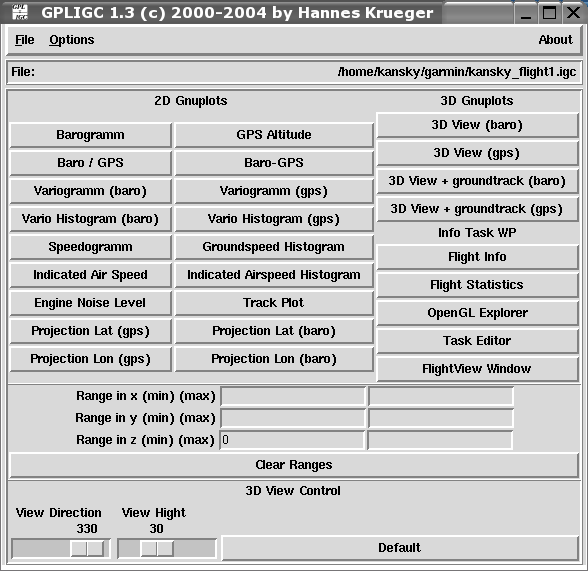

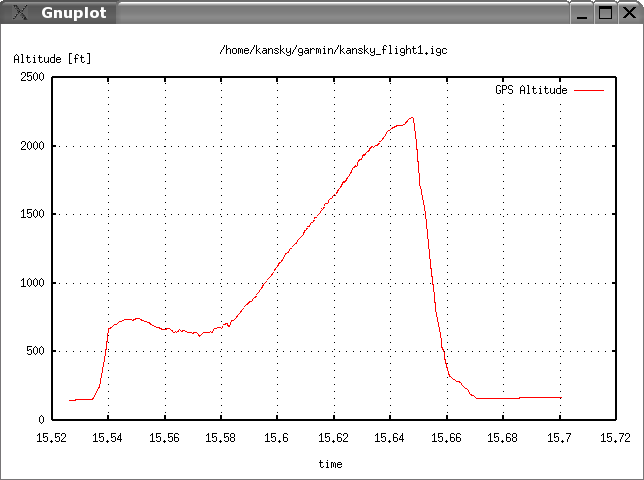

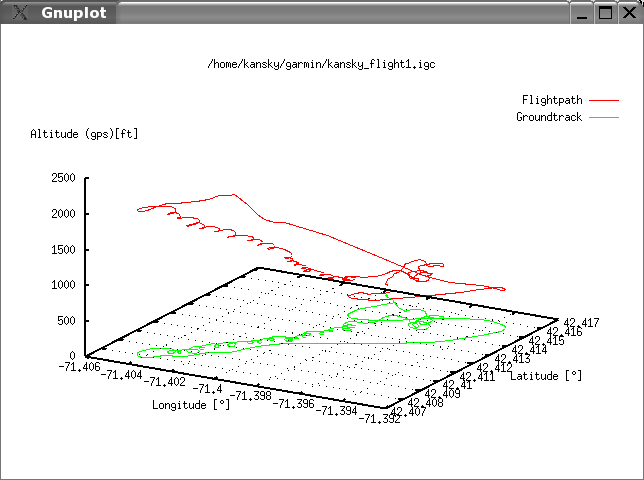

gpligcgpligc flightpathgpligc 3d gnuplotgpligc altitude

This was bit tricky to set up, but it wasn't too bad.  The basic software provides you with an interface to a plotting program called GNUplot, and it also has a 3D visualization package called openGLIGCexplorer.  The default setup for openGLIGCexplorer gives you a nice 3D view using my computer's 3D graphics card.

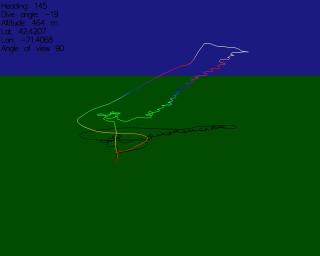

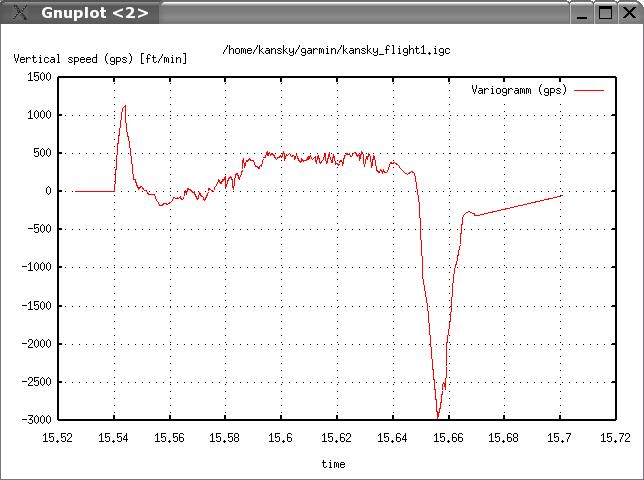

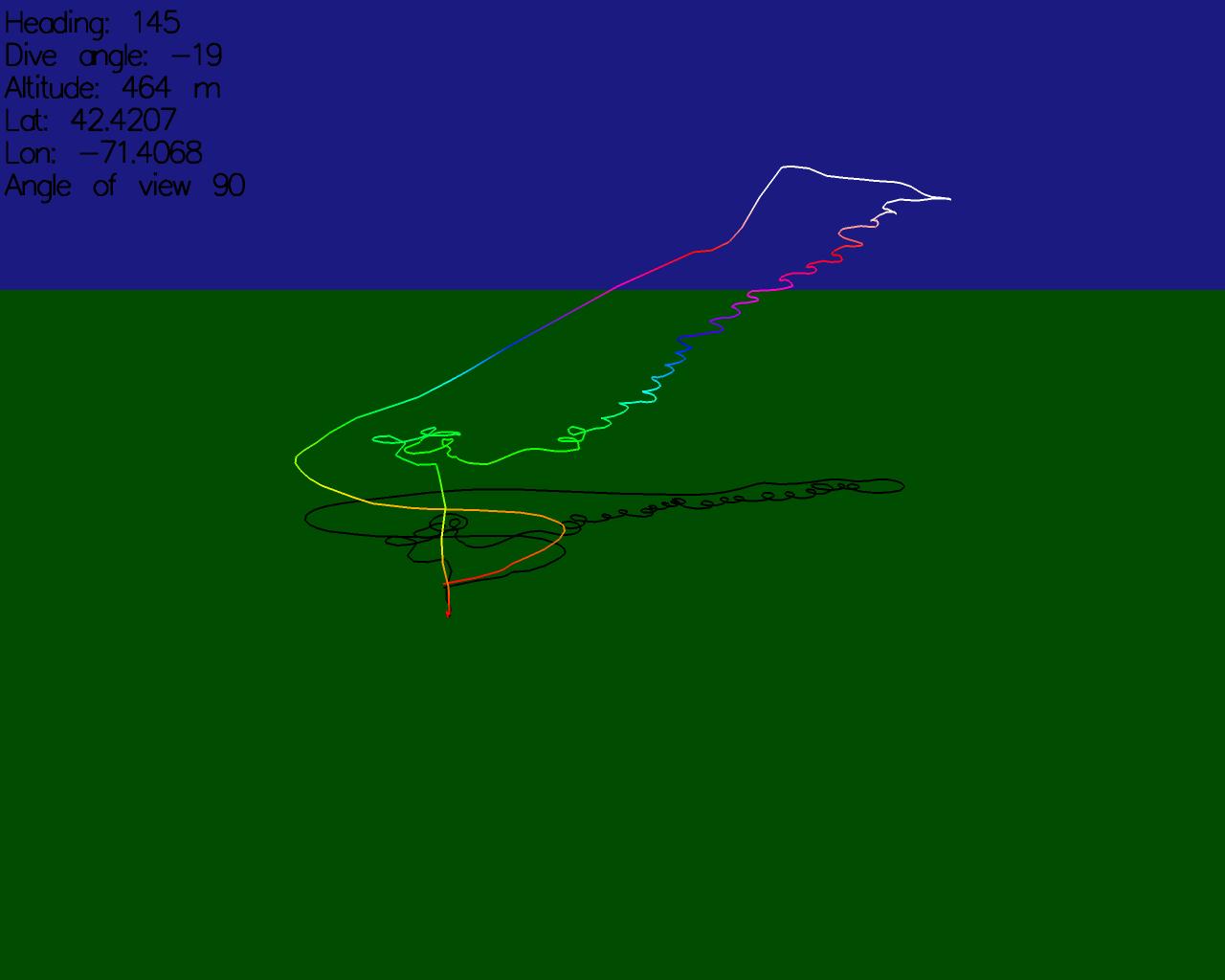

gpligc with no terraingpligc vario plot

I was pretty satisfied that at least on this flight I didn't make any rookie mistakes, but you might notice that I made the wrong descision to go left off the winch launch when the lift was clearly to the right.  But it's hard to beat a 500 foot per minute climb to 2200 feet followed by a rapid descent designed to announce the completion of a max to the competition.

A bit more web searching and I found out that you can download 10 meter resolution radar topography of the US, and 0.5 meter resolution aerial imagery of  Massachusetts on the internet.  To complete the job right you can overlay your flight on the topographic data and aerial imagery.


The topographic data I used was measured on a shuttle mission called the "Shuttle Radar Topography Mission".  The files were available in 1 degree squares covering the whole world.  The 10 meter resolution United States data could be obtained at the Shuttle Radar Topography Mission Digital Elevation Model ftp site.  The lower resolution data for the rest of the world was in another folder on the same site.

The data is in a zipped file in hgt format.   The filenames are determined by the bottom left coordinate of the region that is covered. I ran it throug unzip and added the following lines to my .openGLIGCexplorerrc file.

DEM_FILE /home/kansky/GPLIGC-1.3/openGLIGCexplorer/N42W072.hgt
DEM_GRID_LAT 0.00027777777
DEM_GRID_LON 0.00027777777

Adding the topographic data made the 3D plot look a lot better, but it's a bit flat in this part of the world.  With GPLIGC you can also magnify the vertical scale.

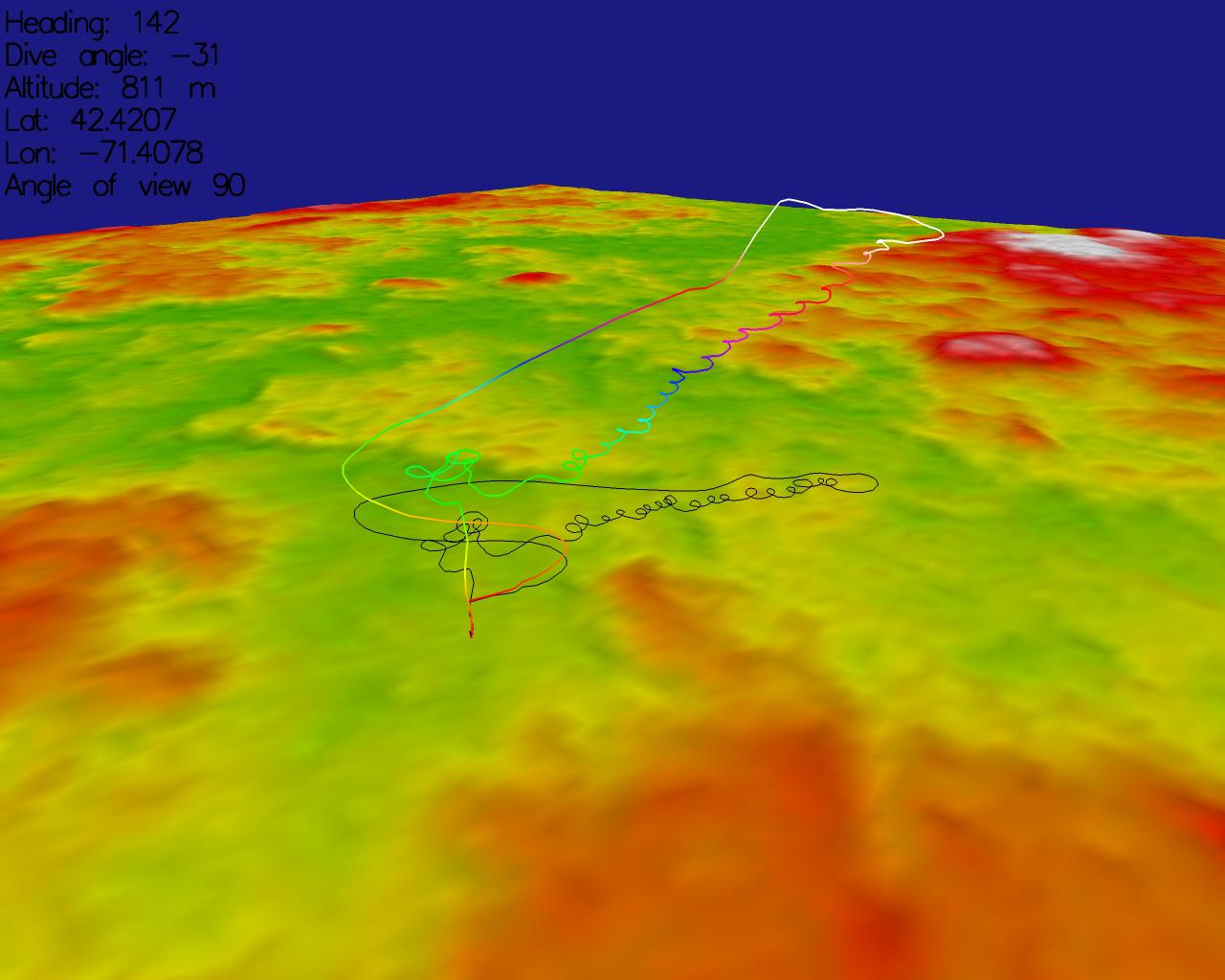

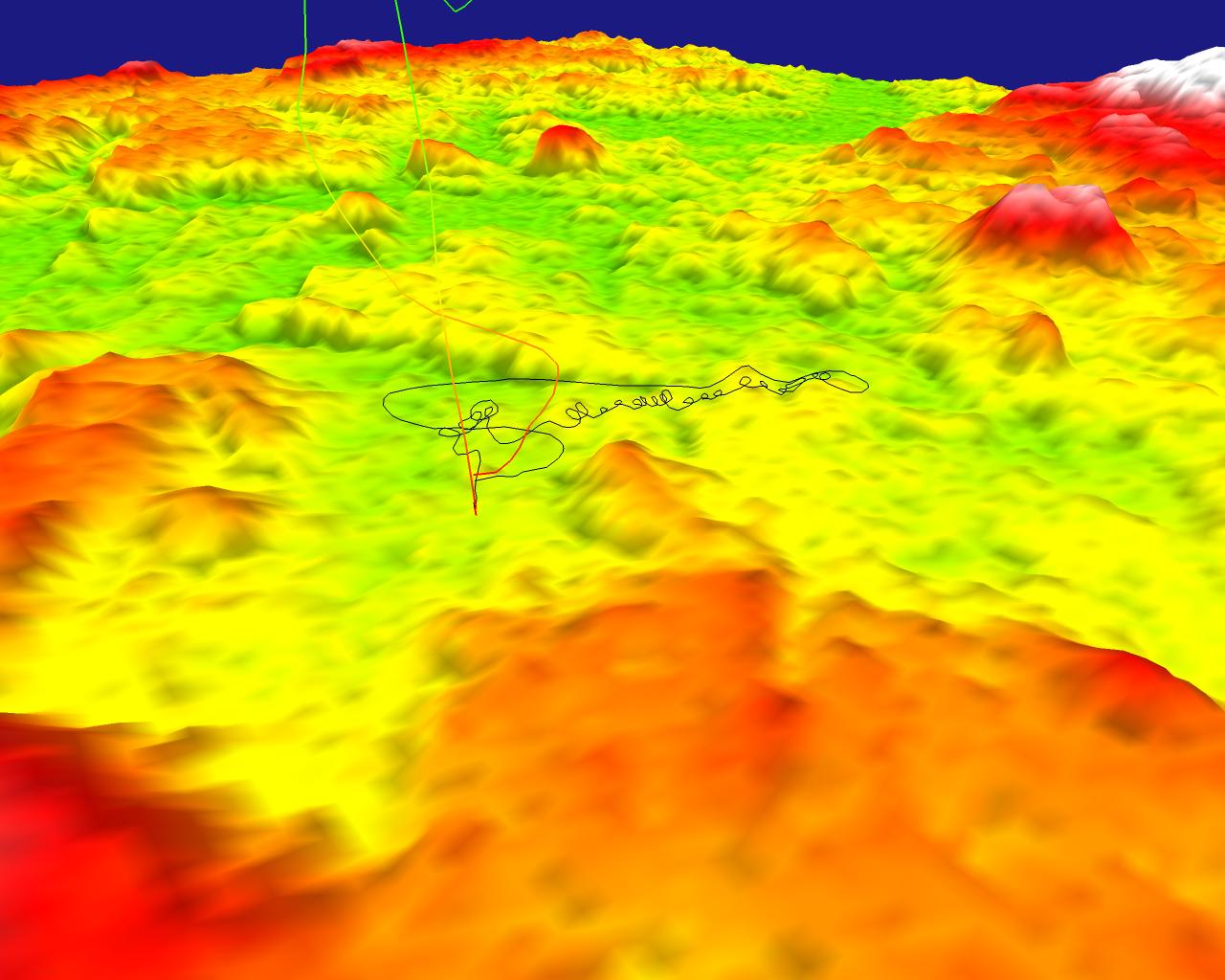

gpligc with srtm terraingpligc strm magnified vertically
Finally things were starting to look good...  The last addition to the picture would be to overlay some aerial photography on top of the terrain.


If you live in Massachusetts, you are lucky because you can download 0.5 meter resolution aerial photos of the entire state for free at the MassGIS web site.  Choosing the correct file can be a bit tricky, but take a look at the following map.  Once you know which file you will need you can get the file from their web site by clicking on the map, and selecting the desired .sid file.  In my case, I download the four images that surrounded the flying field.

The GPLIGC program requires that the files be in JPG format.  There is a .sid to .jpg converter program available from LizardTech.

mrsiddecode -i 209906.sid -o davis_tl.jpg -s 2

This command will generate a jpeg file downsampled by a factor of two from the original 0.5 meter resolution file (the original 4096x4096 .sid files are a bit large to work with).

Adding the aerial images to GPLIGC is as simple as defining the filename and the corner coordinates of the image in your .openGLIGCexplorerrc file:

MAP_FILE /home/kansky/GPLIGC-1.3/openGLIGCexplorer/davis_tl.jpg
MAP_TOP 42.44048
MAP_RIGHT -71.39059
MAP_LEFT -71.43919
MAP_BOTTOM 42.40448
MAP_FILE /home/kansky/GPLIGC-1.3/openGLIGCexplorer/davis_tr.jpg
MAP_TOP 42.44048
MAP_RIGHT -71.34199
MAP_LEFT -71.39059
MAP_BOTTOM 42.40448
MAP_FILE /home/kansky/GPLIGC-1.3/openGLIGCexplorer/davis_bl.jpg
MAP_TOP 42.40448
MAP_RIGHT -71.39059
MAP_LEFT -71.43919
MAP_BOTTOM 42.36848
MAP_FILE /home/kansky/GPLIGC-1.3/openGLIGCexplorer/davis_br.jpg
MAP_TOP 42.40448
MAP_RIGHT -71.34199
MAP_LEFT -71.39059
MAP_BOTTOM 42.36848

To convert from state plane coordinates to geodetic coordinates use the following the NGS converter page.

This config file stitches together 4 images to create the following final result:

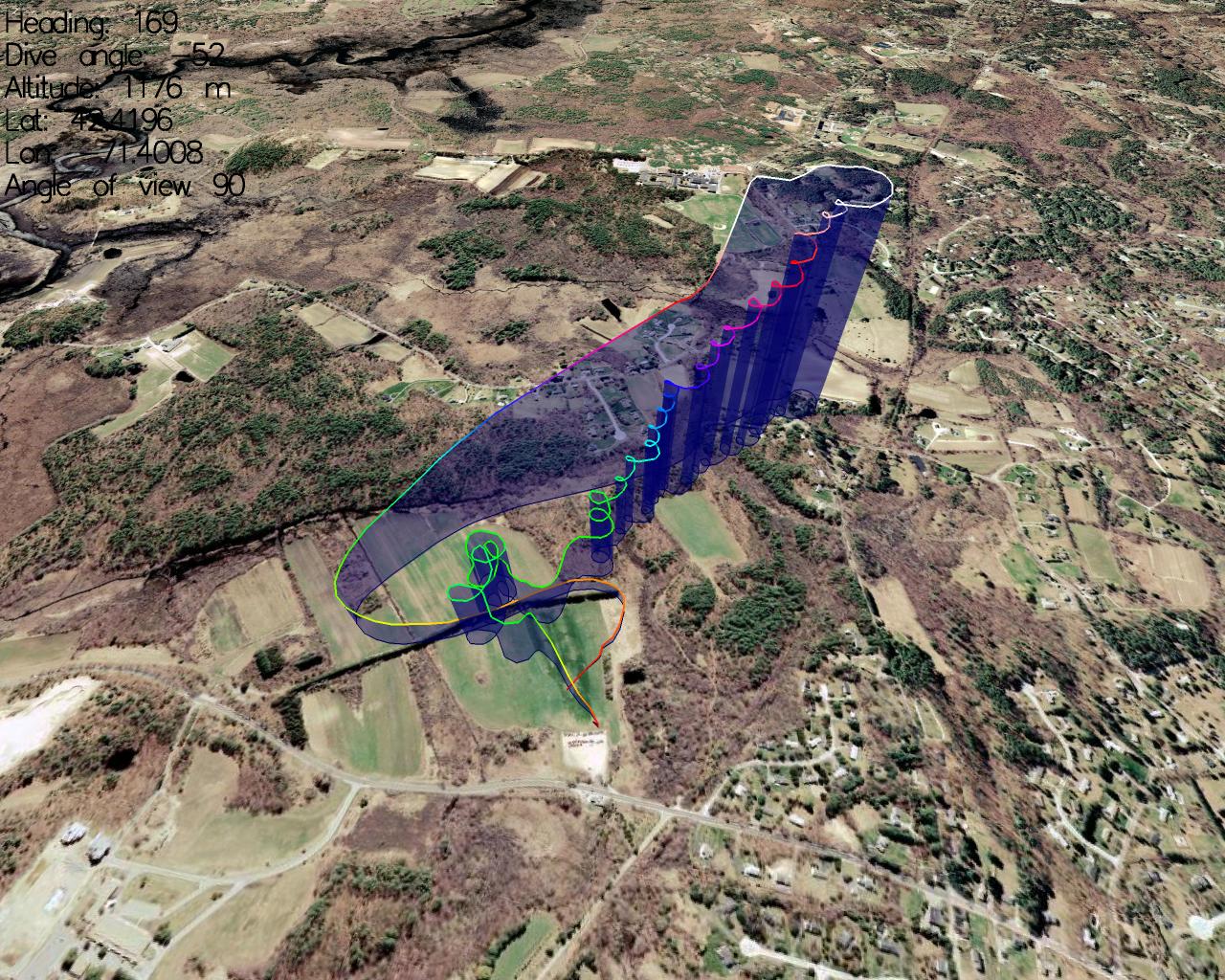

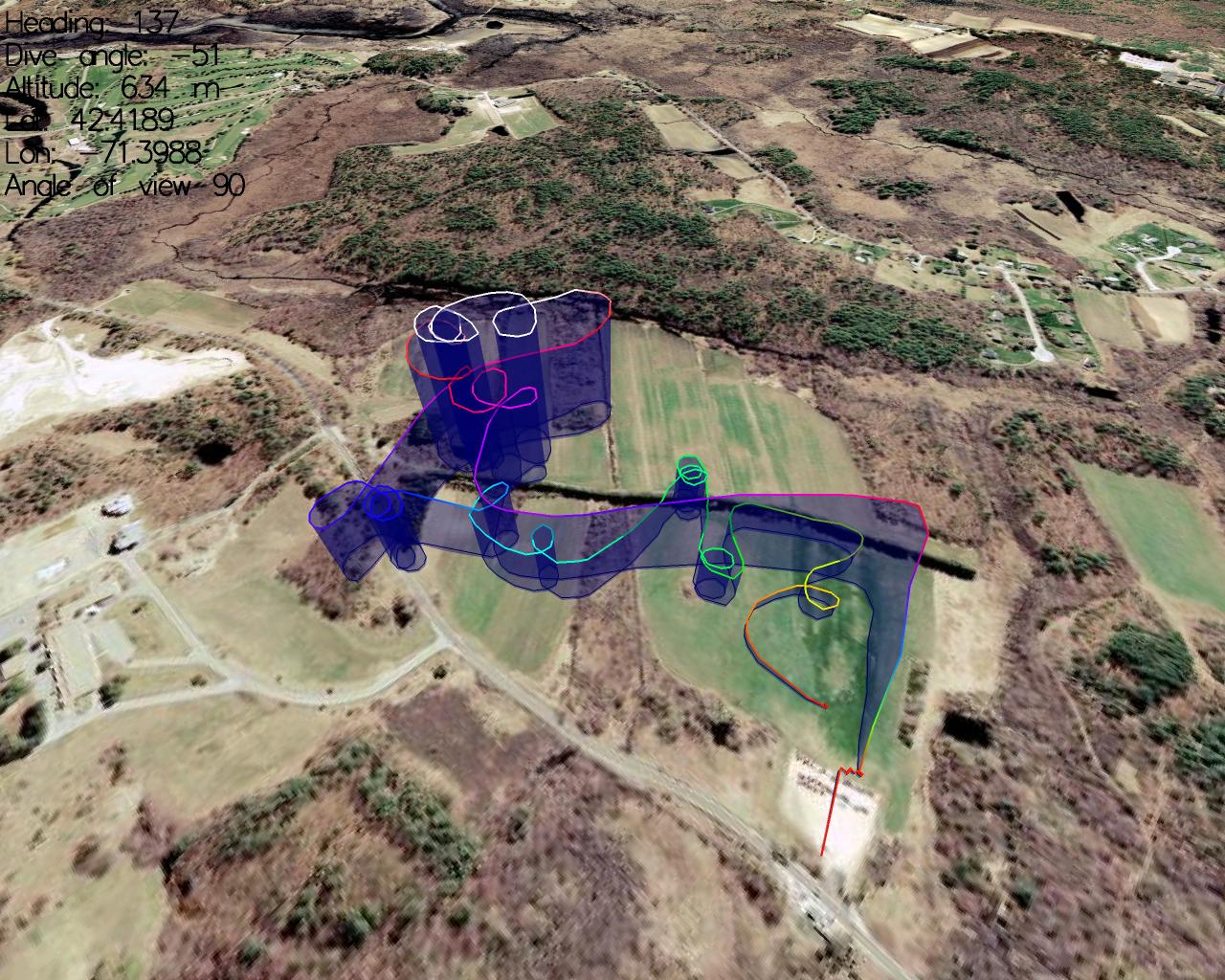

Plot of Sailplane FlightSecond Sailplane Flight

Hope this inspires you to give it a try yourself.  Best of Luck!

Parts List

Garmin Foretrex 201 GPS receiver
G7toWin Garmin interface software
GPLIGC Plotting Software
Shuttle Radar Topography Mission Digital Elevation Model
MassGIS aerial imagery
